peripheral::GatewaySensorManager::ModbusValueEncoding16 Struct Reference

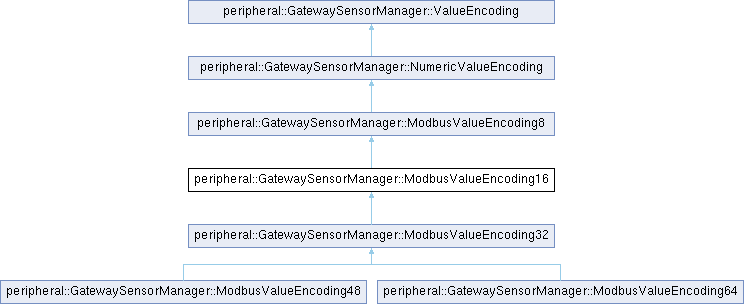

Inheritance diagram for peripheral::GatewaySensorManager::ModbusValueEncoding16:

Additional Inherited Members
Public Attributes inherited from peripheral::GatewaySensorManager::ModbusValueEncoding8
boolean	byteSwap
	16-bit modbus words should be transferred in big-endian byte order.
string	mask
	64-bit unsigned raw mask value as decimal or hexadecimal string, applied before interpreting ("" or "0" = not masked, the same as "0xFFFFFFFFFFFFFFFF")
int	start
	The least significant bit of the read word used in numerical interpretation.
int	width
	Word width in bits used in numerical interpretation.
Public Attributes inherited from peripheral::GatewaySensorManager::NumericValueEncoding
float	scalingFactor
	multiply with when interpreting as numeric value
float	offset
	add value after applying scalingFactor
Public Attributes inherited from peripheral::GatewaySensorManager::ValueEncoding
string	encodingId
	encoding type id
EncodingType	type
	value coding type
boolean	invertState
	invert when interpreting as state
vector< InterpretationRule >	interpretationRules
	error/value interpretation rules
int	minAccessInterval
	minimum time interval between two read accesses in seconds

Detailed Description

Definition at line 565 of file GatewaySensorManager.idl.

---

The documentation for this struct was generated from the following file:

• GatewaySensorManager.idl
