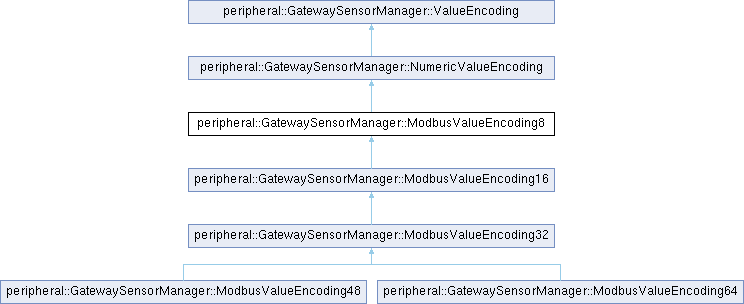

Inheritance diagram for peripheral::GatewaySensorManager::ModbusValueEncoding8:

Public Attributes
boolean	byteSwap
	16-bit modbus words should be transferred in big-endian byte order.
string	mask
	64-bit unsigned raw mask value as decimal or hexadecimal string, applied before interpreting ("" or "0" = not masked, the same as "0xFFFFFFFFFFFFFFFF")
int	start
	The least significant bit of the read word used in numerical interpretation.
int	width
	Word width in bits used in numerical interpretation.
Public Attributes inherited from peripheral::GatewaySensorManager::NumericValueEncoding
float	scalingFactor
	multiply with when interpreting as numeric value
float	offset
	add value after applying scalingFactor
Public Attributes inherited from peripheral::GatewaySensorManager::ValueEncoding
string	encodingId
	encoding type id
EncodingType	type
	value coding type
boolean	invertState
	invert when interpreting as state
vector< InterpretationRule >	interpretationRules
	error/value interpretation rules
int	minAccessInterval
	minimum time interval between two read accesses in seconds

Detailed Description

Definition at line 534 of file GatewaySensorManager.idl.

Member Data Documentation

◆ byteSwap

boolean peripheral::GatewaySensorManager::ModbusValueEncoding8::byteSwap

16-bit modbus words should be transferred in big-endian byte order.

For modbus devices that do not comply with this, byteSwap = true must be set. Another application is to use byteSwap to address a single byte in a 16-bit modbus word in case 8-bit values are requested (ModbusValueEncoding8).

Definition at line 541 of file GatewaySensorManager.idl.

◆ mask

string peripheral::GatewaySensorManager::ModbusValueEncoding8::mask

64-bit unsigned raw mask value as decimal or hexadecimal string, applied before interpreting ("" or "0" = not masked, the same as "0xFFFFFFFFFFFFFFFF")

Definition at line 546 of file GatewaySensorManager.idl.

◆ start

int peripheral::GatewaySensorManager::ModbusValueEncoding8::start

The least significant bit of the read word used in numerical interpretation.

If start is greater than 0, then one or more least significant bits remain unused. 0 is the default value. For integer values a start > 0 has mostly the same effect as using a mask = ~(2^start-1) and a scalingFactor = 1/2^start.

Definition at line 553 of file GatewaySensorManager.idl.

◆ width

int peripheral::GatewaySensorManager::ModbusValueEncoding8::width

Word width in bits used in numerical interpretation.

If width is smaller than the read word width, then the most significant bits remain unused. 0 is the default value. Example: 24 bit signed integer: ModbusValueEncoding32 with start = 0 and width = 24 and 'type = INT (Only for unsigned integer the use of mask` would be sufficient.)

Definition at line 562 of file GatewaySensorManager.idl.
